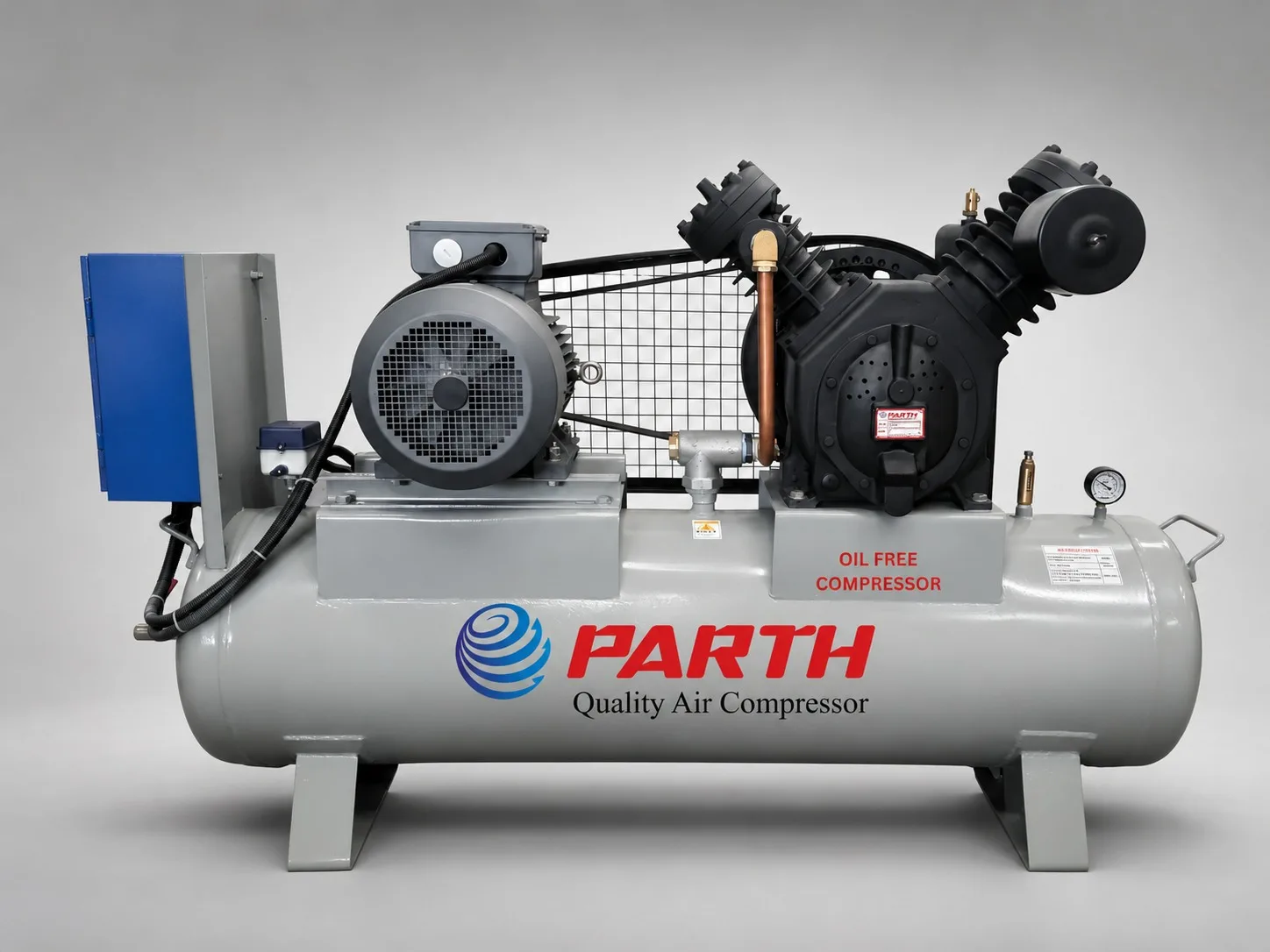

Oil Free Air Compressor
Delivers 100% oil-free compressed air for sensitive applications in food, pharma, and electronics. Piston rings made of self-lubricating materials ensure zero oil contamination.
Built to Perform
Every component is engineered for reliability in continuous industrial operation.
100% oil-free air output
Self-lubricating piston rings
Low maintenance
Meets food-grade standards
Engineered for reliable performance
Oil Free Air Compressors are essential for industries where even trace oil contamination is unacceptable. Using self-lubricating materials instead of oil bath, these compressors deliver clean air for the most sensitive processes.
Technical Specifications
Detailed configuration data for engineering evaluation.
- Motor Range
- 1 – 20 HP
- Working Pressure
- 7 – 10 kg/cm²
- Free Air Delivery
- 3 – 80 CFM
- Oil Content
- 0 ppm (Class 0)
- Stages
- Single / Two-stage
- Cooling
- Air-cooled
* Specifications are indicative. Contact us for custom configurations.
Model Comparison
Find the right capacity for your application.
| Model | Piston Displacement | Max. Pressure | Motor H.P. | No. of CYL. | Air Receiver (Ltr.) | ||
|---|---|---|---|---|---|---|---|
| CFM | M3/H | KG/CM2G | PSIG | ||||
| PE 10-NL | 4.1 | 6.85 | 8 | 115 | 1 | 1 | 25 |
| PE 20-NL | 8.2 | 13.90 | 8 | 115 | 2 | 2 | 50 |
| PE 20-NL/1 | 8.4 | 14.24 | 8 | 115 | 2 | 1 | 92/150 |
| PE 30-TNL | 13.6 | 23.00 | 8 | 115 | 3 | 2 | 150 |
| PE 50-TNL | 15.6 | 26.44 | 10 | 145 | 5 | 2 | 200 |
| PE 75-TNL | 23.8 | 40.33 | 10 | 145 | 7.5 | 3 | 225 |
| PE 150T-NL | 40 | 67.8 | 10 | 145 | 10 | 2 | 300 |
| PE 150T-NL | 51 | 86.4 | 10 | 145 | 15 | 2 | 300 |
| PE 150T-NL | 55 | 93.20 | 10 | 145 | 15 | 2 | 300 |
| PE 200T-NL | 62 | 105 | 10 | 145 | 15 | 3 | 300/500 |
| PE 200T-NL | 74 | 125 | 10 | 145 | 20 | 3 | 300/500 |
| PE 200T-NL | 81.8 | 137 | 10 | 145 | 20 | 3 | 300/500 |
How Oil-Free Compression Works
Compresses air with zero oil contact — clean air for food, pharma, and electronics.
Air Intake
Filtered air is drawn into the cylinder.
Oil-Free Compression
Self-lubricating rings compress air with no oil contact.
Intercooler
Compressed air is intercooled after compression.
Clean Air Out
Class-zero, contaminant-free air for sensitive use.
Where It Works
Trusted across India's manufacturing sectors.
Food & beverage processing
Pharmaceutical manufacturing
Electronics assembly
Medical equipment
