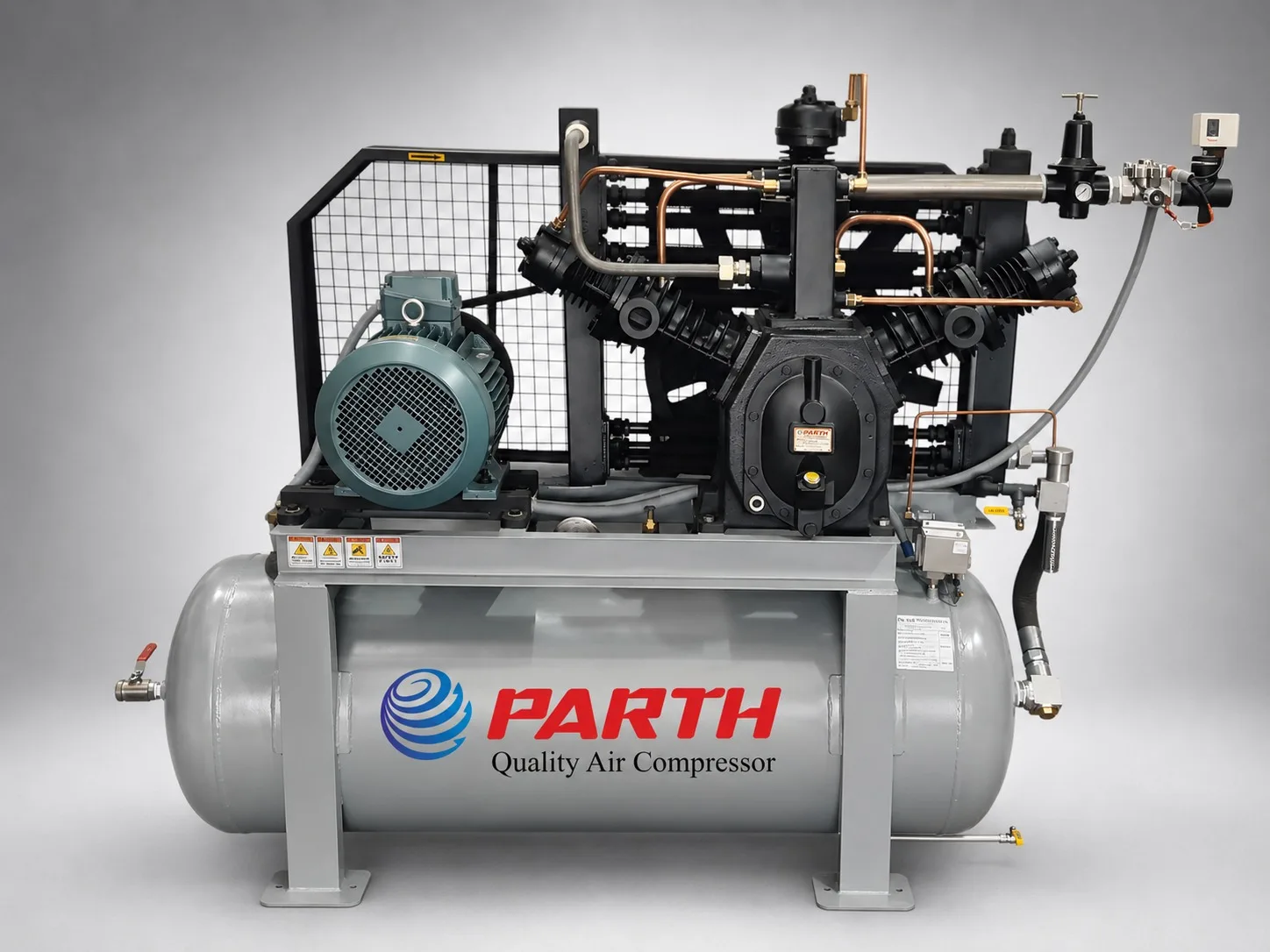

Booster Air Compressor
Boosts existing plant air pressure to higher levels required for PET blowing, laser cutting, and pressure testing. Built with robust intercooling and heavy-duty pistons for sustained high-pressure output.
Built to Perform
Every component is engineered for reliability in continuous industrial operation.
High-pressure output up to 40 bar
Robust intercooling system
Heavy-duty pistons
Compatible with existing plant air
Engineered for reliable performance
Booster Air Compressors take your existing compressed air supply and amplify the pressure to levels needed for specialized applications. Ideal for facilities that need high-pressure air without replacing their entire compressor infrastructure.
Technical Specifications
Detailed configuration data for engineering evaluation.
- Motor Range
- 7 – 40 HP
- Inlet Pressure
- 5 – 7 kg/cm²
- Discharge Pressure
- Up to 40 kg/cm²
- Flow Rate
- 10 – 150 CFM
- Stages
- Multi-stage
- Cooling
- Air-cooled / Water-cooled
* Specifications are indicative. Contact us for custom configurations.
How a Booster Compressor Works
Takes existing compressed air and raises it to a higher pressure on demand.
Pre-Compressed Air In
Air from your main compressor feeds the booster.
Booster Stage
A dedicated stage raises the pressure further.
Cooling
Compressed air is cooled to control temperature.
High-Pressure Out
Boosted air is delivered to high-pressure processes.
Where It Works
Trusted across India's manufacturing sectors.
PET bottle blowing
Laser cutting
Pressure testing
High-pressure pneumatic tools
