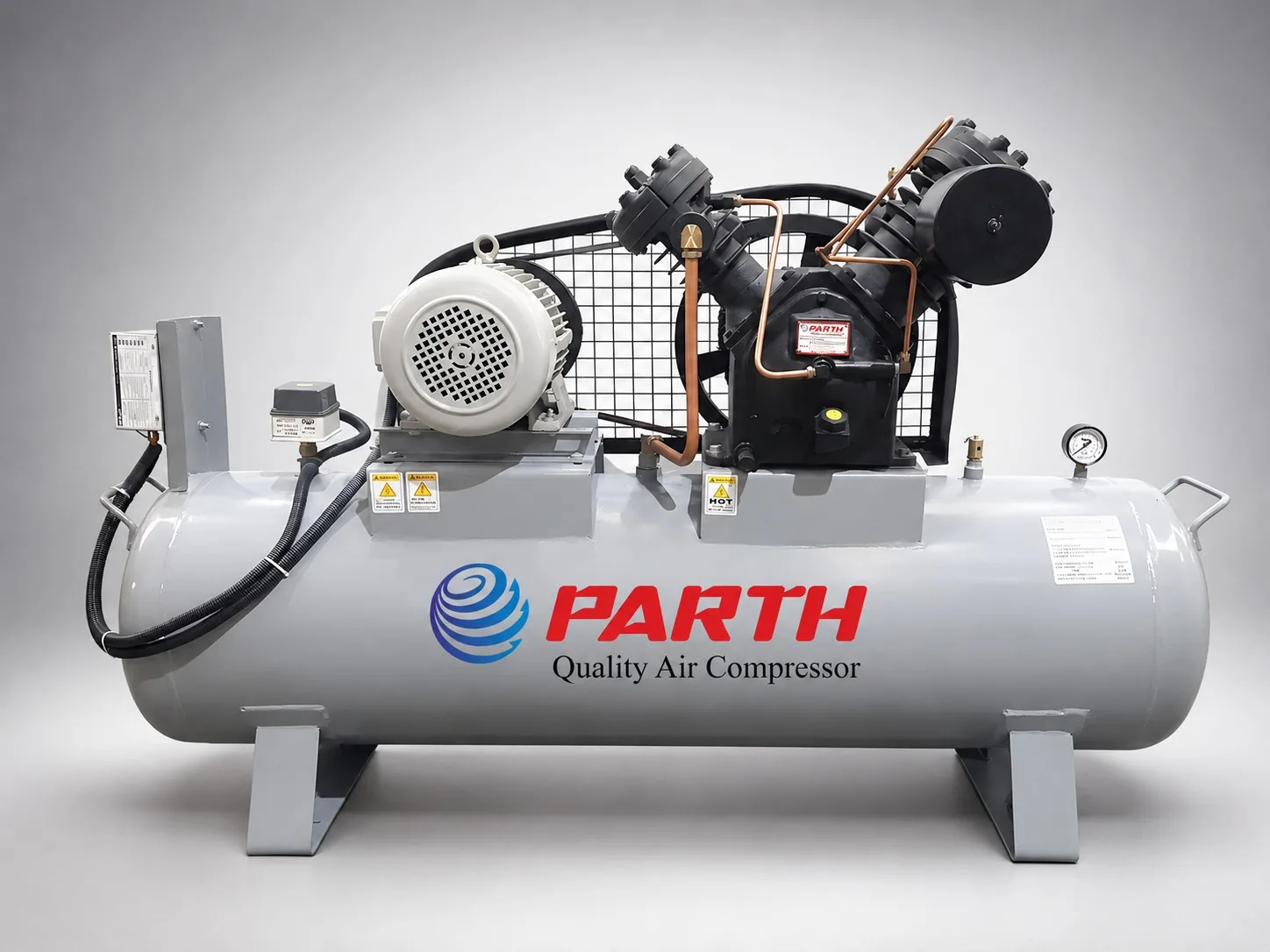

Two Stage Air Compressor
Reliable two-stage reciprocating air compressors for workshops, garages, and small factories. Built with heavy cast iron components for long service life and efficient high-pressure air delivery.
Built to Perform
Every component is engineered for reliability in continuous industrial operation.
Cast iron cylinder block
Efficient two-stage compression
Easy maintenance
Wide HP range
Engineered for reliable performance
Two Stage Air Compressors deliver higher pressures more efficiently than single-stage units. With two compression stages and intercooling, these units are the workhorse choice for demanding industrial applications.
Technical Specifications
Detailed configuration data for engineering evaluation.
- Motor Range
- 3 – 30 HP
- Working Pressure
- 7 – 12 kg/cm²
- Free Air Delivery
- 10 – 120 CFM
- Tank Capacity
- 160 – 500 L
- Stages
- Two-stage
- Cooling
- Air-cooled
* Specifications are indicative. Contact us for custom configurations.
Model Comparison
Find the right capacity for your application.
| Model | Piston Displacement | Max. Pressure | Motor H.P. | No. of CYL. | Air Receiver (Ltr.) | ||
|---|---|---|---|---|---|---|---|
| CFM | M3/H | KG/CM2G | PSIG | ||||
| PE 30T | 7.46 | 12.64 | 10.5 | 150 | 2.0 | 2 | 92/150 |
| PE 30T | 9.79 | 16.59 | 12.3 | 175 | 3.0 | 2 | 150 |
| PE 50T | 17.32 | 29.35 | 12.3 | 175 | 5.0 | 2 | 200 |
| PE 75T | 26.40 | 44.74 | 12.3 | 175 | 7.5 | 2 | 225 |
| PE 100T | 35.00 | 59.32 | 12.3 | 175 | 10.0 | 2 | 300 |
| PE 150T | 44.00 | 74.60 | 10.5 | 150 | 10.0 | 2 | 300 |
| PE 150T | 49.50 | 83.90 | 12.3 | 175 | 12.5 | 2 | 300 |
| PE 150T | 55.00 | 93.20 | 12.3 | 175 | 15.0 | 2 | 300 |
| PE 200T | 68.16 | 115.53 | 12.3 | 175 | 20.0 | 3 | 300/500 |
| PE 200T | 81.80 | 138.64 | 12.3 | 175 | 20.0 | 3 | 500 |
| PE 300T | 87.28 | 147.93 | 12.3 | 175 | 20.0 | 3 | 500 |
| PE 300T | 98.19 | 166.42 | 12.3 | 175 | 25.0 | 3 | 500 |
How Two-Stage Compression Works
Compressing in two steps with intercooling delivers higher pressure, cooler running, and lower power per CFM.
Air Intake
Filtered air is drawn into the low-pressure cylinder.
1st Stage
Compressed to an intermediate pressure.
Intercooler
Air is cooled between stages for efficiency.
2nd Stage
Compressed again to full working pressure.
Air Receiver
Stored ready to use — up to 12 kg/cm².
Where It Works
Trusted across India's manufacturing sectors.
Automotive workshops
Garages
Small factories
CNC machines
