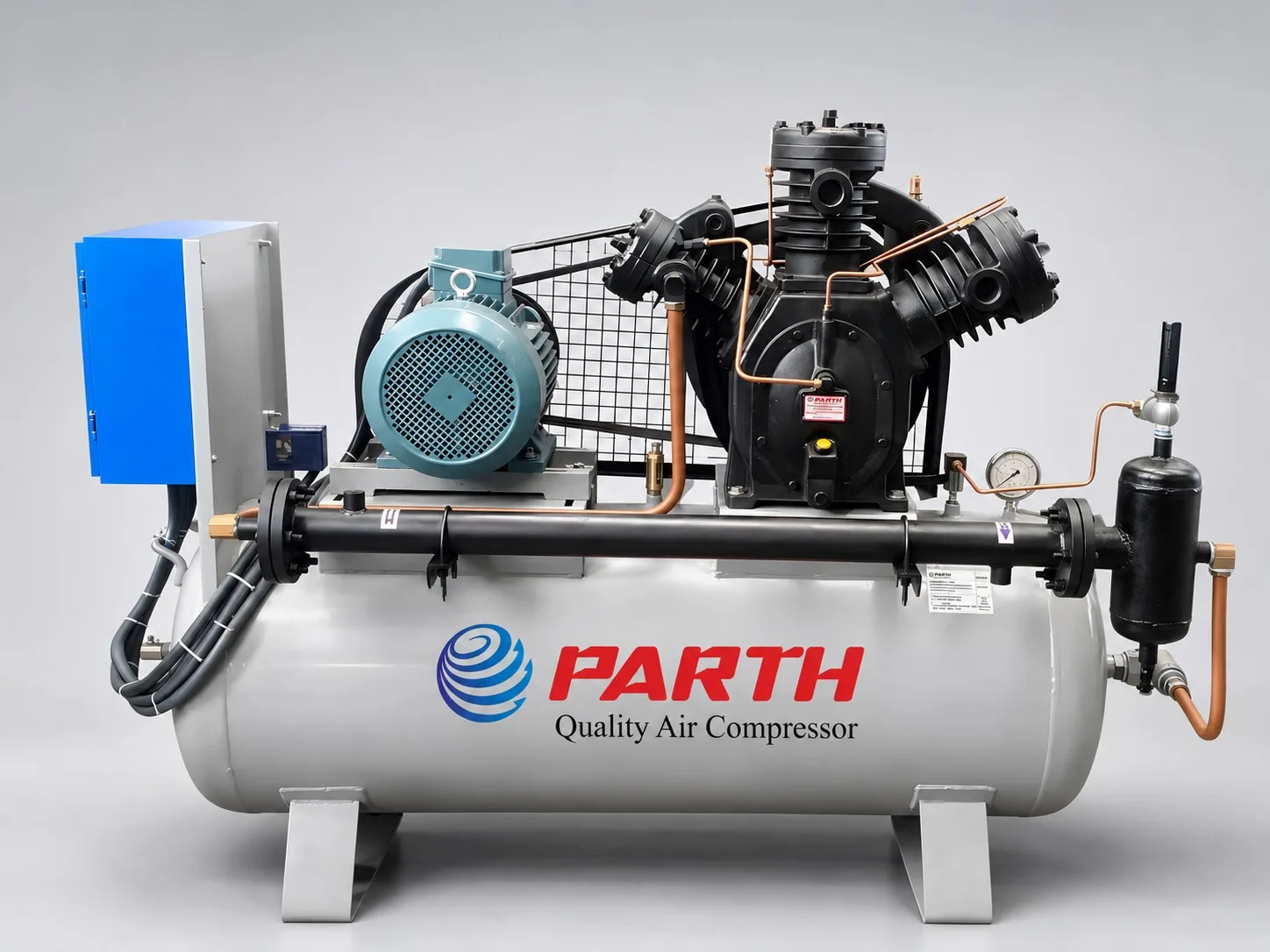

Multistage PET Air Compressor
Purpose-built for PET bottle blowing with pressures up to 40 bar. Multi-stage compression with intercooling ensures reliable high-pressure air for continuous bottle production lines.
Built to Perform
Every component is engineered for reliability in continuous industrial operation.
Up to 40 bar discharge pressure
Multi-stage with intercooling
Designed for PET blowing
Continuous duty rated
Engineered for reliable performance
Multistage PET Air Compressors are specifically engineered for the demanding requirements of PET bottle manufacturing. With multi-stage compression and efficient intercooling, they deliver the high-pressure air needed for blow moulding at production line speeds.
Technical Specifications
Detailed configuration data for engineering evaluation.
- Motor Range
- 15 – 75 HP
- Discharge Pressure
- Up to 40 kg/cm²
- Flow Rate
- 50 – 300 CFM
- Stages
- 3 – 4 stage
- Cooling
- Air-cooled / Water-cooled
- Drive
- Belt / Direct
* Specifications are indicative. Contact us for custom configurations.
Model Comparison
Find the right capacity for your application.
| Model | Max. Pressure | FAD | Motor | Air Receiver | |
|---|---|---|---|---|---|
| KG/CM2G | PSIG | CFM | H.P. | LTRS | |
| PE 30 MS | 10.5 | 500 | 4.5 | 3 | 150 |
| PE 125 MS | 12.3 | 500 | 21 | 12.5 | 300 |
| PE 200 MS | 12.3 | 1000 | 37 | 20 | 500 |
| PE 200 MS (Duplex) | 12.3 | 1000 | 74 | 20X2 | 500/750 |
| PE 200 MS – M | 12.3 | 355 | 54 | 20 | 500 |
| PE 200 MS M (Duplex) | 10.5 | 355 | 108 | 20X2 | 500/750 |
| PE 300 MS – M | 12.3 | 355 | 68 | 25 | 500 |
| PE 300 MS M (Duplex) | 12.3 | 355 | 136 | 252 | 750 |
| PE 250 MS | 12.3 | 425 | 54 | 25 | 500/750 |
| PE 400 MS | 12.3 | 425 | 110 | 40 | 500 |
| PE 500 MS | 12.3 | 568 | 110 | 50 | 500 |
| PE 600 MS | 12.3 | 568 | 152 | 60 | 500/1000 |
| PE 750 MS | 12.3 | 568 | 194 | 75 | 1000 |
How Multistage PET Compression Works
Multiple stages with intercooling reach the high pressure that PET bottle blowing demands.
Air Intake
Filtered air enters the first stage.
Low-Pressure Stage
Compressed to an intermediate pressure.
Intercooling
Cooled between stages to stay efficient.
High-Pressure Stage
Further stages boost air up to ~40 bar.
PET Blowing
High-pressure air feeds the blow-molding machine.
Where It Works
Trusted across India's manufacturing sectors.
PET bottle blowing
Stretch blow moulding
High-pressure pneumatic systems
Continuous production lines
